Douk Audio Q100 Balanced DAC: AK4499EX & AK4191 Hi-Res DAC (PCM 768kHz/32-bit & DSD512) - Bluetooth 5.1 LDAC - XLR/RCA Outputs for Audiophiles & Studio Use

FAQs: Q: Which systems require driver installation? A: UAC1.0: Driver-free on all systems. UAC2.0: Windows 7/8 requires drivers. Windows 10/11 are driver-free for PCM, but need drivers for DSD. MacOS and Linux are driver-free. Q: Q100 can't work with my phone via USB, is a driver required? A: No, it's drive-free. Please use the supplied OTG-compatible USB cable and ensure the phone support OTG. On some phones, you may need to enable OTG in settings. For iPhones/iPads with a Lightning port, a high-current camera kit is required. Q: Do the XLR and RCA outputs work simultaneously, and is the volume synchronized? A: Yes, both outputs work at the same time, with volume control applied to both simultaneously. Q: What op-amps are used, and can they be replaced? A: The Q100 uses five OPA1612 surface-mount op-amps, which are soldered directly onto the board and cannot be replaced or swapped out. Q: Which functions can only be controlled via the remote control? A: Only clearing Bluetooth pairing and UAC1.0/2.0 switching must require the remote; all other functions can be operated from the panel. Q: Does switching UAC mode require restarting the Q100? A: Usually no restart is required. For a small number of computers the USB cable may need to be reconnected. Parameters Brand: Douk Audio Model: Q100 Audio input: Bluetooth 5.1 / USB-C / Coaxial / Optical / AES Audio output: XLR / RCA Chipset: AK4499 + AK4191 + QCC5125 + XU316 + OPA1612 Bluetooth supported codecs: SBC / AAC / aptX / aptX-HD / LDAC Max sampling rate supported: USB input: PCM 768kHz/32bit, DSD512 (native), DSD256 (DoP) Coaxial/Optical input: PCM 192kHz/24bit, DSD64 (DoP) AES input: 192kHz/24bit Frequency response: 20Hz-20KHz (±0.1dB) SNR: ≥124dB THD+N: 0.0002%@1kHz Max output level: RCA: 2.3V; XLR: 4.5V USB compatible operating systems: Windows 7/8/10/11, macOS, Linux, Android, iOS Filter modes: PCM: 6 modes, DSD: 2 modes Brightness of display screen: 10-100% Screen display time: 15s / 30s / solid on Working voltage: Adaptive AC 100-130V Dimensions (W*D*H): 228*170*46mm / 8.98*6.69*1.81in Package dimensions (W*D*H): 400*230*80mm / 15.74*9.05*3.15in Net weight: 1.73kg / 3.81lb Package weight: 3.0kg / 6.61lb Packing list * Q100 DAC ×1 * Bluetooth Antenna ×1 * Remote Control ×1 * Power Cord ×1 * USB-A/C to USB-C Cable ×1 * Optical Cable ×1 * User Manual ×1

• Flagship DAC Performance for Audiophiles: Powered by premium AK4499EX & AK4191 DAC chips (with XMOS XU316 & QCC5125 processors), the Q100 decodes music with stunning clarity and detail. Supports PCM up to 768kHz/32-bit and native DSD512 for true hi-res audio.
• All-In-One Digital Connectivity: The Q100 offers USB-C, AES/EBU, optical, coaxial, and Bluetooth 5.1 inputs (with LDAC & aptX-HD support). Effortlessly connect everything from PCs, streamers, and CD players to TVs and phones with high-fidelity clarity.
• Studio-Grade Balanced Outputs: Enjoy pure, dynamic sound via both balanced XLR and single-ended RCA outputs (both active simultaneously for flexible use). With SNR ≥124 dB and THD+N as low as 0.0002%, the Q100 delivers ultra-transparent audio and pinpoint stereo imaging.

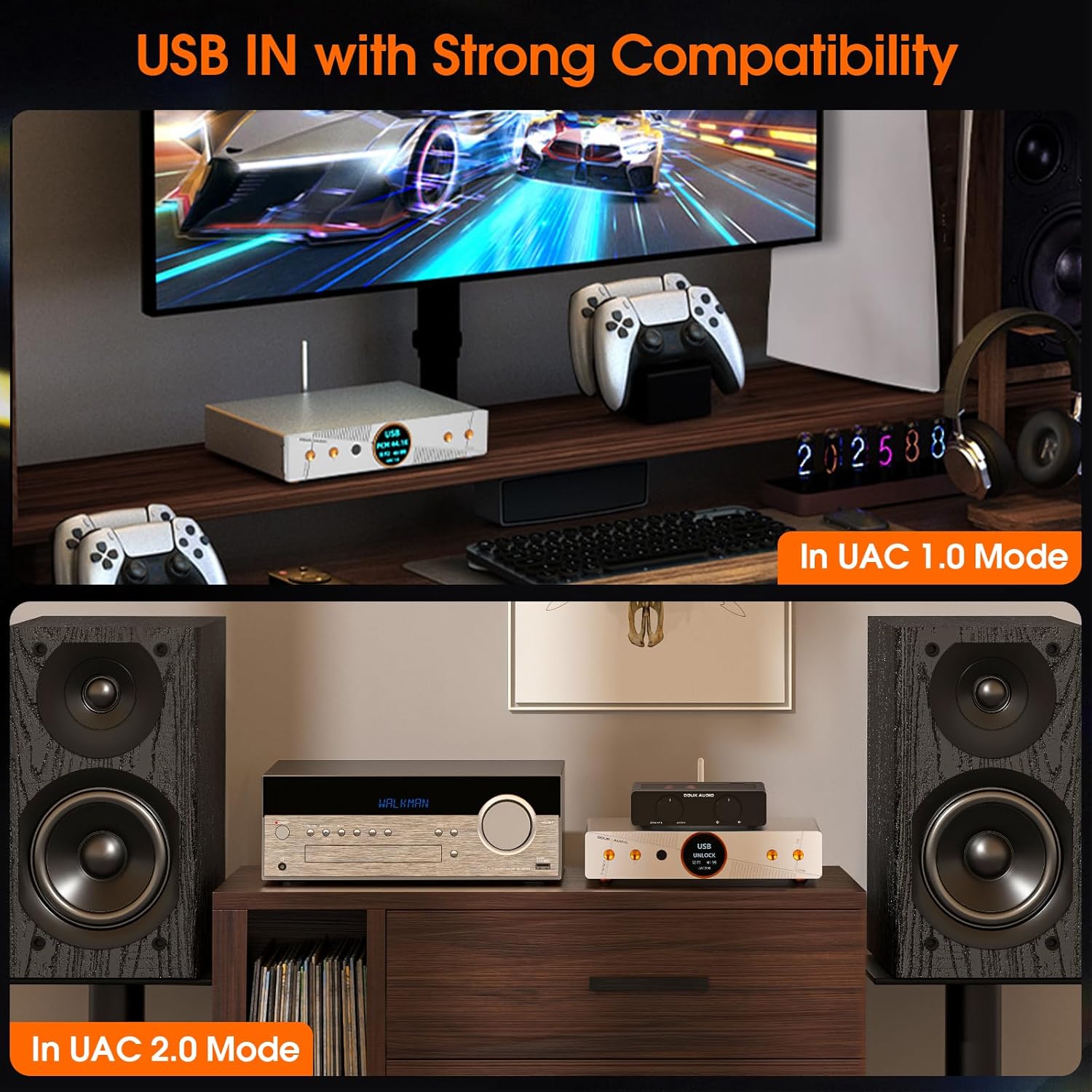

• Universal USB Mode Switch: Flip between UAC1.0 (for plug-and-play with PS5, Switch, and legacy systems) and UAC2.0 (for up to 768kHz/DSD512 high-res audio on modern Windows, Mac, Linux). Enjoy seamless USB audio for gaming, music, or production.
• Intuitive Controls & Display: The Q100 offers 6 PCM and 2 DSD filter modes to fine-tune the sound, plus a crisp OLED screen with adjustable brightness and auto-off. A full-function remote and 12V trigger input add convenient control for a seamless desktop Hi-Fi experience.
